Perc-Rite® Pre Engineered Residential

Request A Quote

Overview

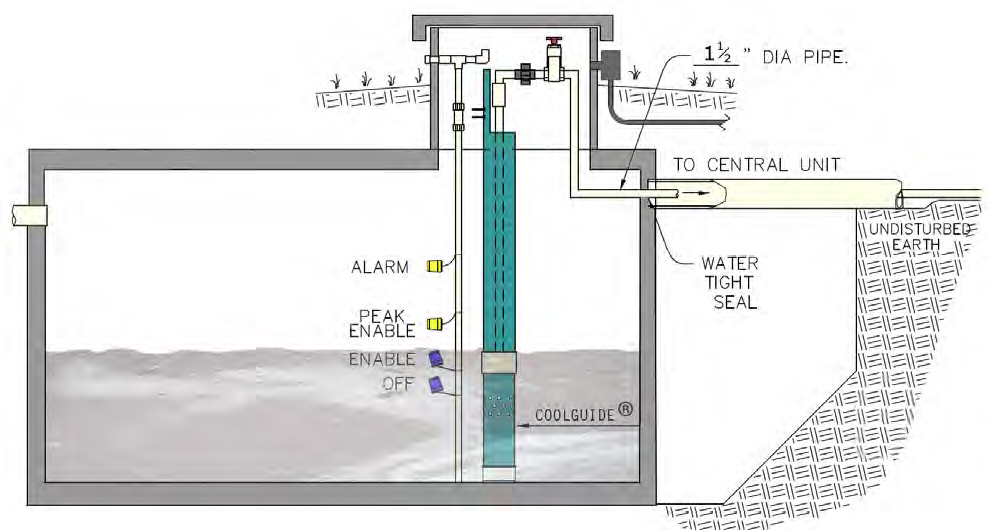

A high head submersible pump installed inside a Coolguide™ delivers effluent to the filtration unit. To minimize operational costs, the disc filters automatically backflush at the beginning of each dose and periodically during dosing. Accumulated solids from the filters are returned to the pretreatment unit.

Cost-Effective & Economical

  • Scalable as your family and house grow
  • Reduced engineering time due to pre-engineered & integrated components
  • Smaller drain field area
  • Low operation and maintenance costs

Green & Sustainable

  • Low energy consumption
  • Minimal site disturbance
  • Reduces sediment runoff
  • Groundwater recharge
  • Nutrient reduction of TN & P
  • Landscape and tree preservation

About PERC-RITE®

PERC-RITE® is a unique fluid handling system for the dispersal of septic tank effluent wastewater into soil. The system incorporates filtration, time dosing and low rate drip distribution tubing. In conditions where aerobic dispersal (such as low pressure distribution of septic effluent) is required or where land application with the use of conventional soil absorption fields is not acceptable, PERC-RITE® offers a method for subsurface & surface dispersal of the wastewater.

PERC-RITE® accommodates all pretreatment processes including septic tanks, aerobic treatment units, lagoon, and media filtration. Only primary treatment—the removal of large settled solids—of the sewage is necessary for the operation of the system. Local soil and site conditions may require additional treatment for excessive organics, nutrients, F.O.G or other contaminants. American Manufacturing works with manufacturers of all quality septic tanks, NSF40 and NSF245 equivalent treatment systems.



Package #DescriptionZone DetailMaterial ListFilter UnitControl PanelSpecifications
AWD151-S1211 Zone Simplex Washdown 1 Filter w/ DP0 ControlSTANDARD 1 ZONE LAYOUTAWD151-S121WD15 NO ZONESDP0 1 FILTER SIMPLEX 1 ZONE WITHOUT HEATERENGINEERING SPECIFICATIONS
AWD151C-S1211 Zone Simplex Cold Climate Washdown 1 Filter w/DP0 ControlSTANDARD 1 ZONE LAYOUTAWD151C-S121WD15 ONE ZONEDP0 1 FILTER SIMPLEX 1 ZONEENGINEERING SPECIFICATIONS
AWD152C-S1222 Zone Simplex Cold Climate Washdown 1 Filter w/DP0 ControlSTANDARD 2 ZONE LAYOUTAWD152C-S122WD15 TWO ZONEDP0 1 FILTER SIMPLEX 2 ZONEENGINEERING SPECIFICATIONS
AWD153C-S1243 Zone Simplex Cold Climate Washdown 1 Filter w/DP0 ControlSTANDARD 3 ZONE LAYOUTAWD153C-S124WD15 THREE ZONEDP0 1 FILTER SIMPLEX 4 ZONEENGINEERING SPECIFICATIONS
AWD154C-S1244 Zone Simplex Cold Climate Washdown 1 Filter w/DP0 ControlSTANDARD 4 ZONE LAYOUTAWD154C-S124WD15 FOUR ZONEDP0 1 FILTER SIMPLEX 4 ZONEENGINEERING SPECIFICATIONS
ASD151-S12215 gpm, 1 Zone w/ Simplex 2 Filter, 2-Zone Control PanelSTANDARD 1 ZONE LAYOUTASD151-S122ASD15 ONE ZONEDP0 2 FILTER SIMPLEX 2 ZONEENGINEERING SPECIFICATIONS
ASD152-S12215 gpm, 2 Zone w/ Simplex 2 Filter, 2-Zone Control PanelSTANDARD 2 ZONE LAYOUTASD152-S122ASD15 TWO ZONEDP0 2 FILTER SIMPLEX 2 ZONEENGINEERING SPECIFICATIONS
ASD151-S124-2Z15 gpm, 2 Remote Zone w/ Simp. 2 Filt., 4-Zn Control PanelSTANDARD 2 ZONE RZV LAYOUTASD151-S124-2ZASD15 ONE ZONEDP0 2 FILTER SIMPLEX REMOTE ZONE CONTROLENGINEERING SPECIFICATIONS
ASD153-S12415 gpm, 3 Zone w/ Simplex 2 Filter, 4-Zone Control PanelSTANDARD 3 ZONE LAYOUTASD153-S124ASD15 THREE ZONEDP0 2 FILTER SIMPLEX 4 ZONEENGINEERING SPECIFICATIONS
ASD154-S12415 gpm, 4 Zone w/ Simplex 2 Filter, 4-Zone Control PanelSTANDARD 4 ZONE LAYOUTASD154-S124ASD15 FOUR ZONEDP0 2 FILTER SIMPLEX 4 ZONEENGINEERING SPECIFICATIONS
ASD153-D12415 gpm, 3 Zone w/ Duplex 2 Filter, 4-Zone Control PanelSTANDARD 3 ZONE LAYOUTASD153-S124ASD15 THREE ZONEDP0 2 FILTER DUPLEX 4 ZONEENGINEERING SPECIFICATIONS
ASD154-D12415 gpm, 4 Zone w/ Duplex 2 Filter, 4-Zone Control PanelSTANDARD 4 ZONE LAYOUTASD154-D124ASD15 FOUR ZONEDP0 2 FILTER DUPLEX 4 ZONEENGINEERING SPECIFICATIONS
