Hydro Pneumatic Design

Hydro-pneumatic systems are a proven solution for maintaining consistent pressure and reliable water distribution in demanding applications. By integrating pumps, pressure tanks, and intelligent controls, these systems deliver stable performance while minimizing equipment wear.

This design utilizes coordinated pump operation and air pressure regulation to respond efficiently to changing system demands. The result is smooth, controlled delivery, reduced short cycling, and extended system life cycles, which factors in long term performance and reliability.

Engineered for both functionality and durability, this system incorporates:

• Precision pump controls for consistent dosing and operation
• Hydro-pneumatic pressure tanks to stabilize flow and pressure
• Air compressor integration for accurate pressure management
• Built in alarms and monitoring for system protection and diagnostics

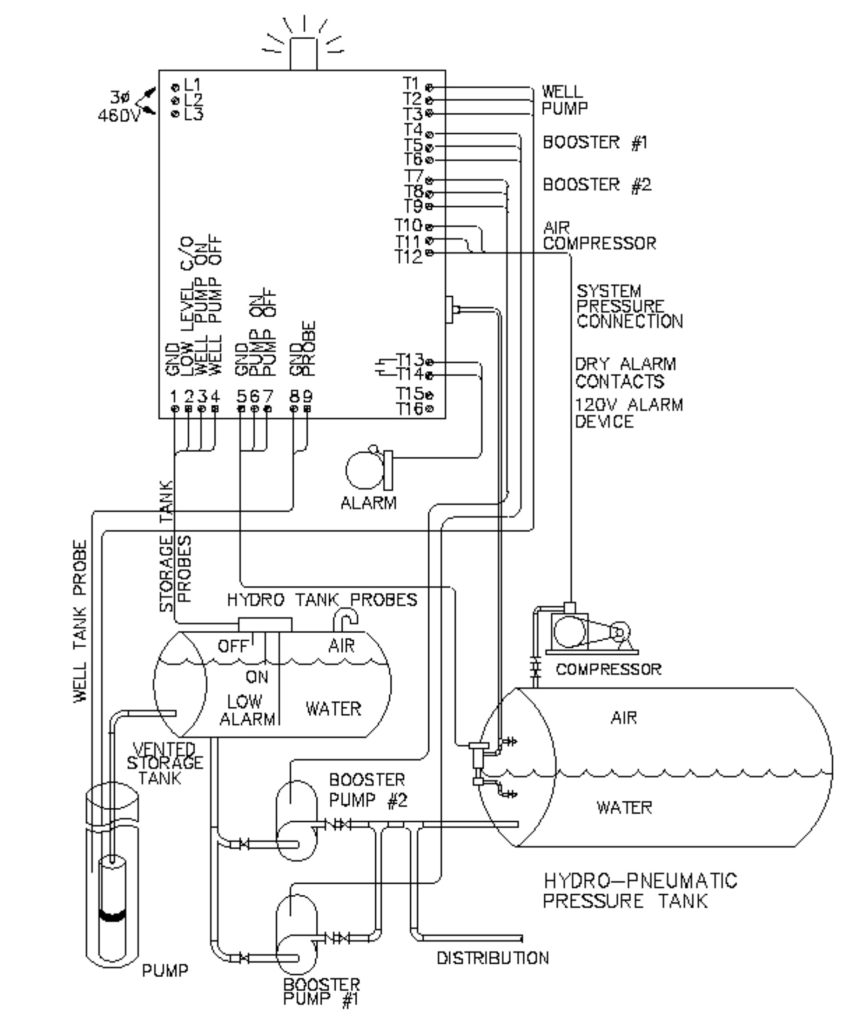

The Design Guidance document below provides a detailed overview of system layout, control logic, and component integration. It includes schematics, wiring diagrams, and operational guidance to support proper installation, startup and system performance in the field.
